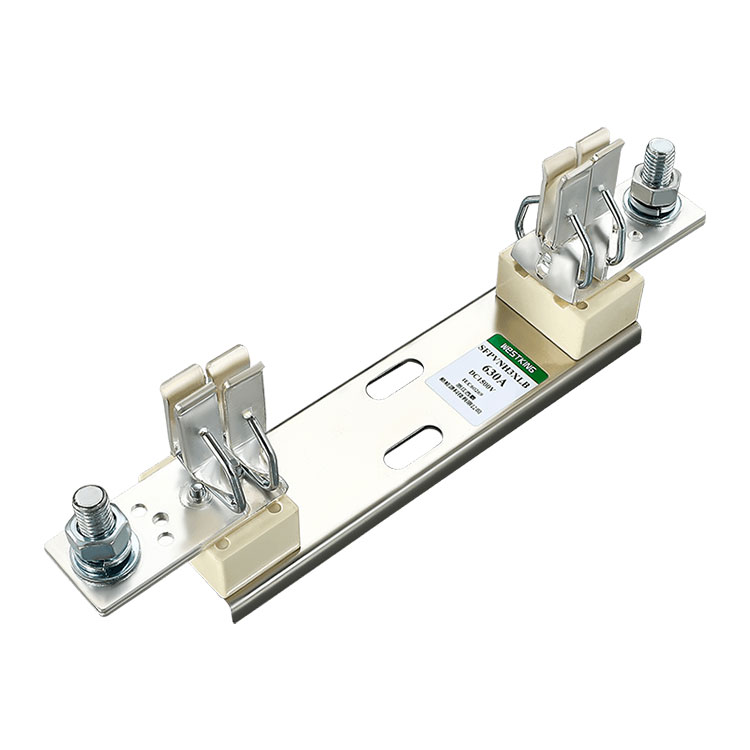

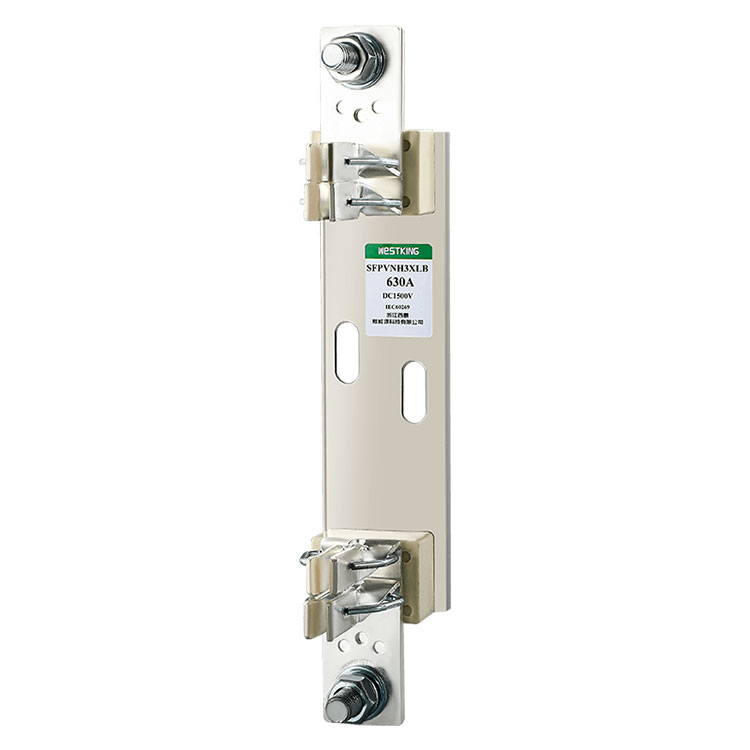

1500Vdc NH3XL PV Fuse Base
  • 1500Vdc NH3XL PV Fuse Base1500Vdc NH3XL PV Fuse Base
  • 1500Vdc NH3XL PV Fuse Base1500Vdc NH3XL PV Fuse Base

1500Vdc NH3XL PV Fuse Base

The NH3XL photovoltaic fuse holder1500Vdc NH3XL PV Fuse Base , boasting a maximum rated current of 630A, has undergone innovative enhancements by WESTKING. In a strategic move to minimize power loss, we have augmented the copper contact area and introduced a spring clamp to the design. This ensures a steadfast and stable connection for the photovoltaic fuse, effectively mitigating the emergence of localized high temperatures. By implementing this design, we aim to enhance the safety and stability of connections, prolong the fuse's service life, and guarantee the uninterrupted operation of the system.

Send Inquiry

Product Description

The NH3XL photovoltaic fuse holder 1500Vdc NH3XL PV Fuse Base has a maximum rated current of 630A. In order to effectively reduce power loss, WESTKING has increased the copper contact area and added a spring clamp in the design to ensure the reliable and stable connection of the photovoltaic fuse, while reducing the generation of local high temperatures. This design can improve the safety and stability of the connection, extend the service life of the fuse, and ensure the normal operation of the system.


1500Vdc NH3XL PV Fuse Base Technical data

?Rated voltage: 1500Vdc
?Rated currents: 630A
?Product Size: NH3XL gPV fuses links
?Rated breaking capacity: 50kA
?Storage temperature: -40°C ... 90°C
?Operating temperature : -40°C ... 85°C
?Rated impulse withstand voltage: 12kV


1500Vdc NH3XL PV Fuse Base Standards

IEC/EN 60269-1

IEC/EN 60269-2

IEC/EN 60269-6


1500Vdc NH3XL PV Fuse Base KEY FEATURES/ADVANTAGES

The metal base plate is connected by insulating components

High elasticity spring clip

Meet 48 hour salt spray test

Can withstand torque requirements higher than standard


1500Vdc NH3XL PV Fuse Base APPLICATIONS

Photovoltaic applications up to 1500VDC

Protection at the PV string/array level

Inverter applications

Combiner box operation


1500Vdc NH3XL PV Fuse Base Certifications

is09001 iatf16949


Origin

China


1500Vdc NH3XL PV Fuse Base ELECTRICAL CHARACTERISTICS

type Net weigh packing
SFPVNH3XLB 930g 1pc/box


Dimensions (mm)


Compatible FUSE link


Model and significance
