10/14x85 1500VDC PV Fuse Holder
  • 10/14x85 1500VDC PV Fuse Holder10/14x85 1500VDC PV Fuse Holder
  • 10/14x85 1500VDC PV Fuse Holder10/14x85 1500VDC PV Fuse Holder
  • 10/14x85 1500VDC PV Fuse Holder10/14x85 1500VDC PV Fuse Holder
  • 10/14x85 1500VDC PV Fuse Holder10/14x85 1500VDC PV Fuse Holder

10/14x85 1500VDC PV Fuse Holder

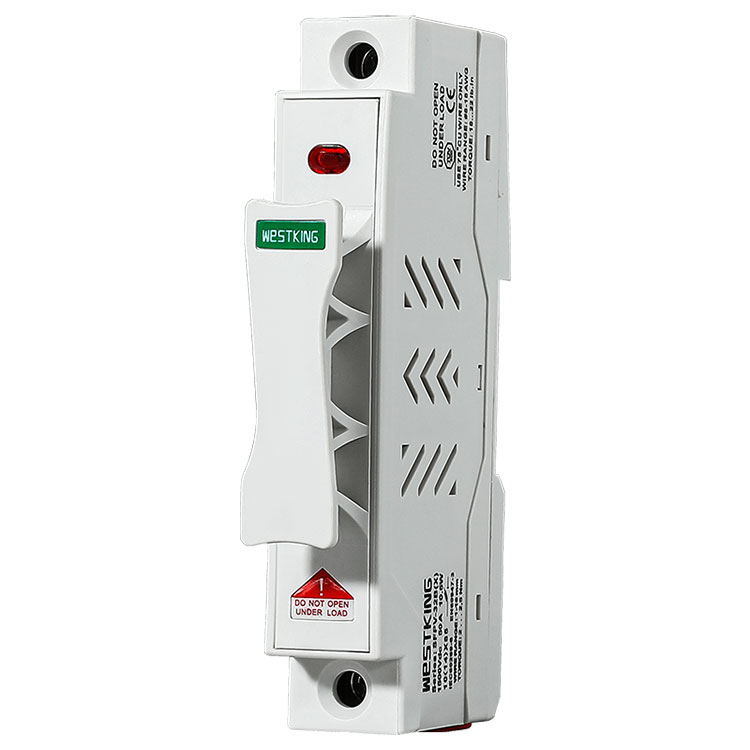

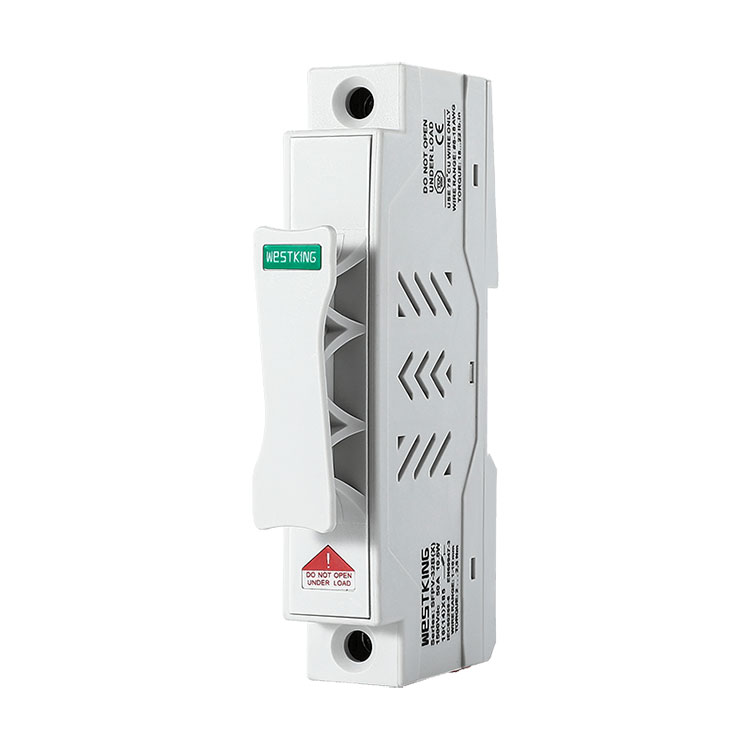

The SFPV-32BX photovoltaic fuse 10/14x85 1500VDC PV Fuse Holder base is compatible with both 1500VDC 10X85MM and 10/14×85MM photovoltaic fuses, with a maximum rated current of up to 50A. The development of this PV fuse holder is based on in-depth communication and testing verification with numerous photovoltaic base station users by WESTKING.The SFPV-32B 1500VDC fuse holder features an advanced heat dissipation structure, with channels for hot air flow between poles, effectively reducing temperature superposition generated by the fuse. The internal space is designed to allow the fuse to hang freely, preventing it from touching the holder's plastic shell and reducing the risk of burning and carbonizing the plastic.

Send Inquiry

Product Description

To facilitate replacing fuses10/14x85 1500VDC PV Fuse Holder, the holder is designed with a drawer-style handle that can be easily pulled out, making the fuse replacement process more convenient and safe. In summary, the SFPV-32BX photovoltaic fuse base demonstrates excellent performance and reliability in enhancing power station operation efficiency and ensuring safety. It is a trusted choice for photovoltaic installations.


10/14x85 1500VDC PV Fuse Holder Technical data

?Rated voltage: 1500Vdc
?Rated currents: 50A
?Degree of protection: IP20
?Product Size: 10/14x85mm gPV fuses link
?Rated breaking capacity: 50kA
?Storage temperature: -40°C ... 90°C
?Operating temperature : -40°C ... 85°C
?Power dissipation of fuse-holder: 0.37W
?Rated insulation voltage: 6kV


Standards

IEC/EN 60269-1

IEC/EN 60269-2

UL4248-1 Fuse holders

UL4248-19 Photovoltaic fuse holders

UL486E Wiring terminals

CSA C22.2 No 4248-1 Fuse holder assemblies

CSA 22.2 No 65 Wire connectors


KEY FEATURES/ADVANTAGES

Compact design saves space

TH35 DIN rail installation for easy integration

Drawer-style plug-and-play design, safe and convenient for fuse replacement

Optional visual fuse indicator

Made from PBT plastic material

Flame-retardant material, V0 rating


10/14x85 1500VDC PV Fuse Holder APPLICATIONS

Photovoltaic applications up to 1500VDC

Protection at the PV string/array level

Inverter applications

Combiner box operation


10/14x85 1500VDC PV Fuse Holder Certifications

is09001 iatf16949

TUV CE


Origin

China


10/14x85 1500VDC PV Fuse Holder ELECTRICAL CHARACTERISTICS

type led indicator Net weigh packing
SFPV-32B-1P NO 117g 6pcs/box
SFPV-32BX-1P yes 120g 6pcs/box

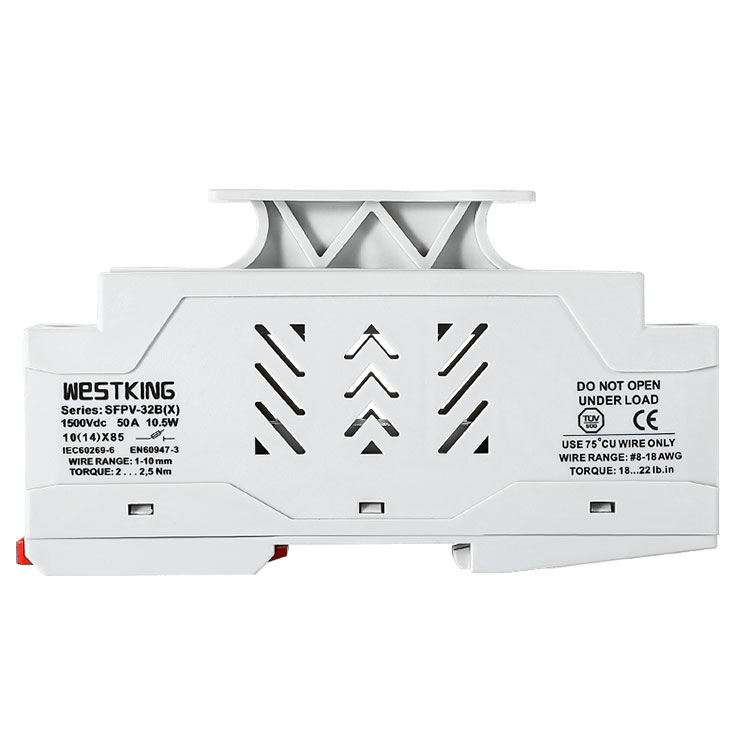

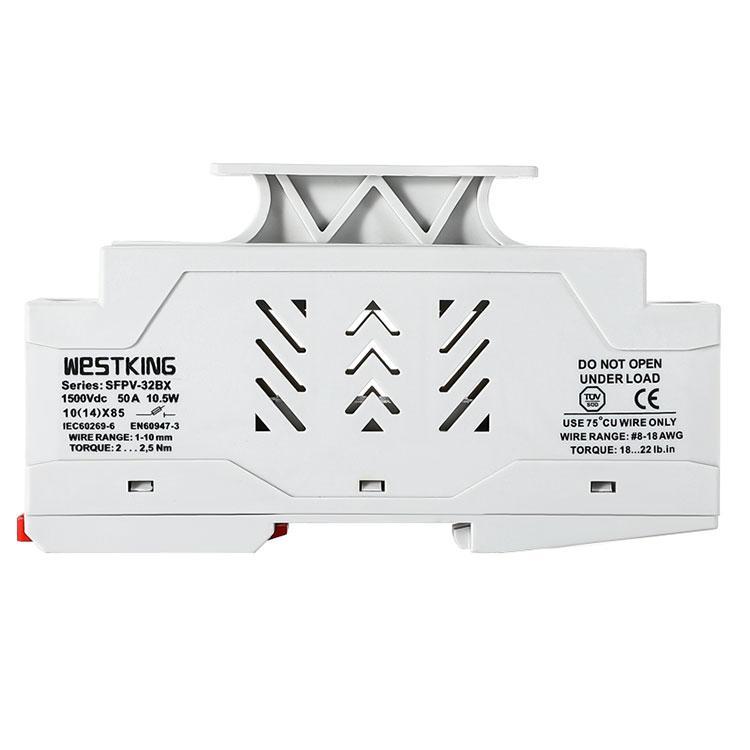

Dimensions (mm)


Compatible FUSE link


Model and significance


WESTKING Photovoltaic Fuse and holder

Application Diagram
