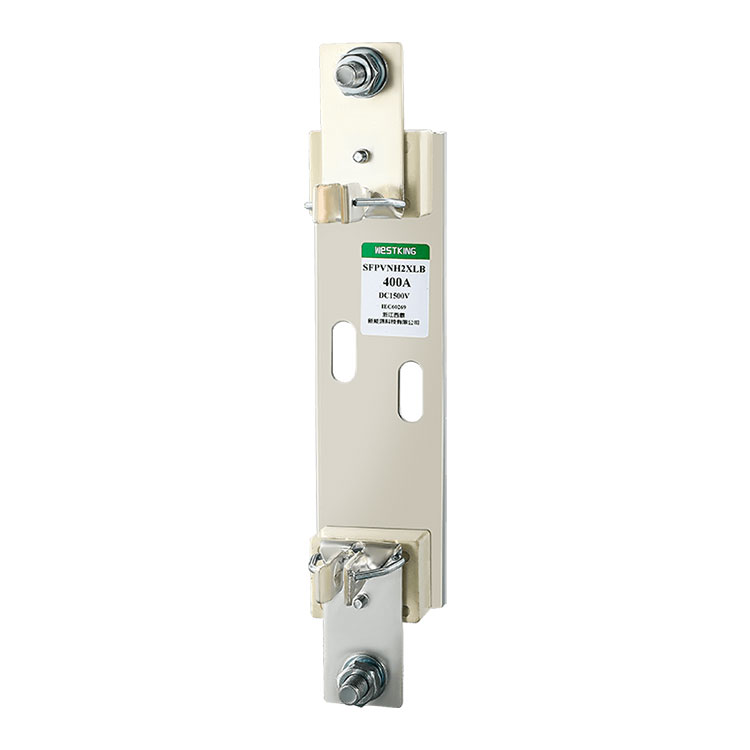

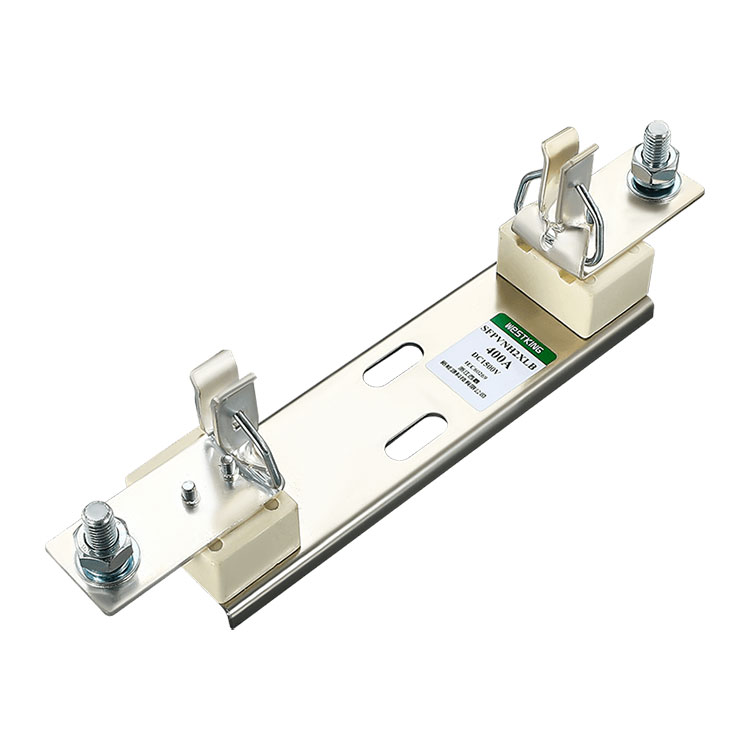

1500Vdc NH2XL PV Fuse Base

WESTKING's 1500VDC product line 1500Vdc NH2XL PV Fuse Base presents an array of fuse holders tailored to diverse current needs. Among them, the NH2XL fuse holder stands out with a robust design capable of handling up to 400A of load current, fully compliant with the stringent IEC60269 standard. Moreover, it adheres strictly to ROHS regulations, ensuring environmental responsibility throughout its manufacturing process.

Send Inquiry

Product Description

WESTKING's 1500VDC product line 1500Vdc NH2XL PV Fuse Base offers a range of fuse holders suitable for different current applications. The NH2XL fuse holder features a maximum load current of 400A and is designed to meet the IEC60269 standard. It is also manufactured in accordance with ROHS regulations.


1500Vdc NH2XL PV Fuse Base Technical data

?Rated voltage: 1500Vdc
?Rated currents: 400A
?Product Size: NH2XL gPV fuses links
?Rated breaking capacity: 50kA
?Storage temperature: -40°C ... 90°C
?Operating temperature : -40°C ... 85°C
?Rated impulse withstand voltage: 12kV


1500Vdc NH2XL PV Fuse Base Standards

IEC/EN 60269-1

IEC/EN 60269-2

IEC/EN 60269-6


1500Vdc NH2XL PV Fuse Base KEY FEATURES/ADVANTAGES

The metal base plate is connected by insulating components

High elasticity spring clip

Meet 48 hour salt spray test

Can withstand torque requirements higher than standard


1500Vdc NH2XL PV Fuse Base APPLICATIONS

Photovoltaic applications up to 1500VDC

Protection at the PV string/array level

Inverter applications

Combiner box operation


Certifications

is09001 iatf16949


Origin

China


ELECTRICAL CHARACTERISTICS

type Net weigh packing
SFPVNH2XLB 685g 1pc/box


Dimensions (mm)


Compatible FUSE link


Model and significance


Hot Tags: 1500Vdc NH2XL PV Fuse Base, China, Manufacturer, Supplier, Factory, Quality, Customized
