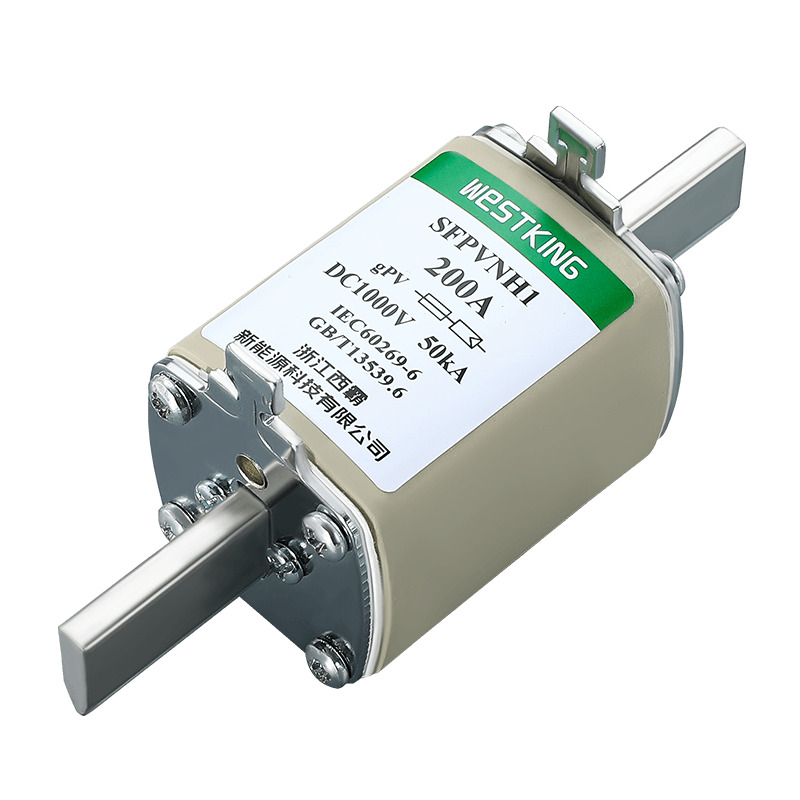

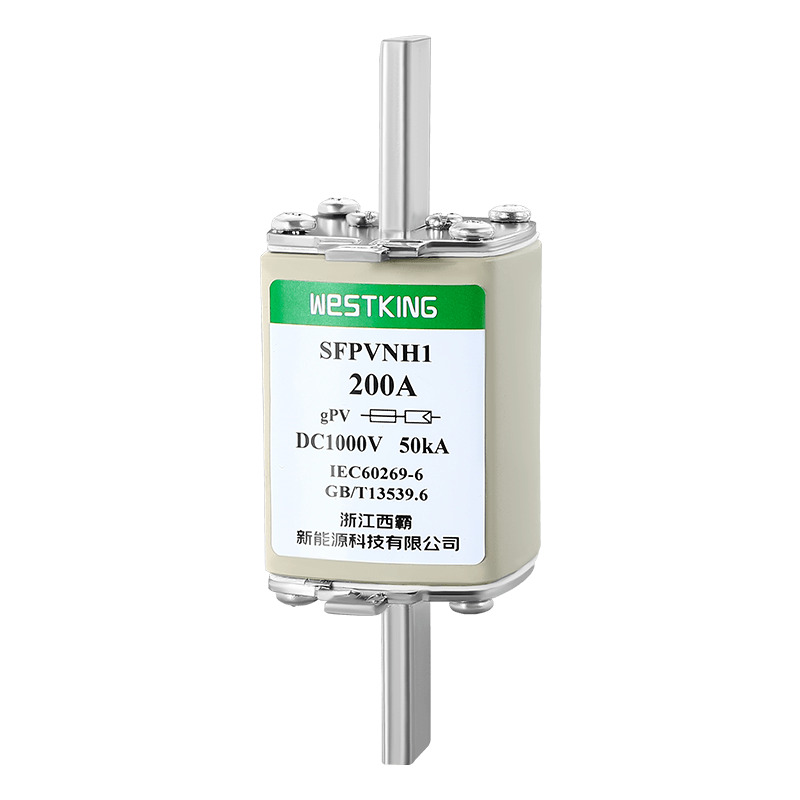

              1000Vdc NH1 GPV PV Fuse Link
              • 1000Vdc NH1 GPV PV Fuse Link1000Vdc NH1 GPV PV Fuse Link
              • 1000Vdc NH1 GPV PV Fuse Link1000Vdc NH1 GPV PV Fuse Link

              1000Vdc NH1 GPV PV Fuse Link

              Tailored for the safeguarding of photovoltaic systems, the WESTKING SFPVNH1 photovoltaic (PV) fuse series 1000Vdc NH1 GPV PV Fuse Link stands as a dedicated solution. Engineered to respond swiftly to short circuits within solar panels along a PV chain, these fuse links from WESTKING play a pivotal role in shielding the cables within the PV chain, categorically serving as the primary fuse.

              Send Inquiry

              Product Description

              The WESTKING SFPVNH1 photovoltaic (PV) fuse series 1000Vdc NH1 GPV PV Fuse Link is specifically designed for the protection of photovoltaic systems. When a short circuit occurs in a solar panel within a PV chain, WESTKING SFPVNH1 fuse links effectively protect the cables in the PV chain (main fuse category). This series of fuses not only expands our PV fuse size selection globally but also adopts a gPV type that complies with both IEC 60269-6 PV standards.Furthermore, these fuses also feature detachable blades for easy direct mounting.Their main features include worldwide compatibility, low fault current interrupting capability, temperature cycle resistance, durable construction for extended system lifespan, high efficiency with minimal power loss, and a compact footprint. The WESTKING SFPVNH1 photovoltaic fuse series is available in two versions: plain blade and direct mounting, catering to the diverse needs of various photovoltaic system applications.

              Technical data

              ?Rated voltage: 1000Vdc
              ?Rated currents: 40A...160A
              ?Utilization category: gPV
              ?Rated breaking capacity: 50kA
              ?Minimum interrupt rating: 1.35·In
              ?Non fusing current: 1.13·In
              ?Storage temperature: -40°C ... 90°C
              ?Operating temperature : -40°C ... 85°C

              ?When the ambient temperature exceeds 25°C, please refer to the WESTKING Solar fuse temperature correction table.

              1000Vdc NH1 GPV PV Fuse Link Standards

              IEC/EN 60269-1 Fuse links – general requirements

              IEC/EN 60269-6 Fuse links for solar photovoltaic systems

              UL248-19 Photovoltaic fuse links

              RoHS Compliant

              1000Vdc NH1 GPV PV Fuse Link KEY FEATURES/ADVANTAGES

              Widely accepted globally

              Capable of interrupting low fault currents

              Withstands temperature cycles effectively

              Constructed with durability to enhance system longevity

              High efficiency with minimal power losses

              Compact design for space-saving installation

              1000Vdc NH1 GPV PV Fuse Link APPLICATIONS

              Protection for inverter DC inputs

              Applications for re-combiners (sub combiner, array combiner, master combiner)

              Suitable for all photovoltaic application


              is09001 iatf16949




              Rated Current I2t (A2s) Power loss(w) 1.0 In Net weight
              Melting Clearing
              40A 140 1200 8.0 427g
              50A 159 1431 11.0
              63A 467 4203 12.0
              80A 638 5742 15.50
              100A 1300 11700 16.50
              125A 2547 22923 17.50
              160A 5198 46782 22.00

              t-I characteristics

              Dimensions (mm)

              Compatible FUSE bases

              temperature correction coefficient chart


              1.The fuse operates normally within the temperature range of -5°C to 40°C, and no additional correction is required.

              2.The allowable usage conditions are -40°C to 85°C.

              3.Within the range of allowable usage conditions, refer to this table.

              The 1000Vdc NH0 gPV Fuse Link is a compact and high-quality product developed and manufactured by WESTKING New Energy Technology Co., Ltd. for use in the 1000VDC voltage platform. With a voltage platform of 40A-100A, this fuse link is designed to save space in combiner box applications, thanks to its small size and high segmentation ability. It is capable of quickly cutting off the circuit in a short time, effectively protecting equipment from damage caused by overcurrent and short-circuit faults. Made from high-quality materials, this fuse link offers excellent reliability and a long service life.
