750VDC WKIGBT-S Fuse Link
  • 750VDC WKIGBT-S Fuse Link750VDC WKIGBT-S Fuse Link
  • 750VDC WKIGBT-S Fuse Link750VDC WKIGBT-S Fuse Link

750VDC WKIGBT-S Fuse Link

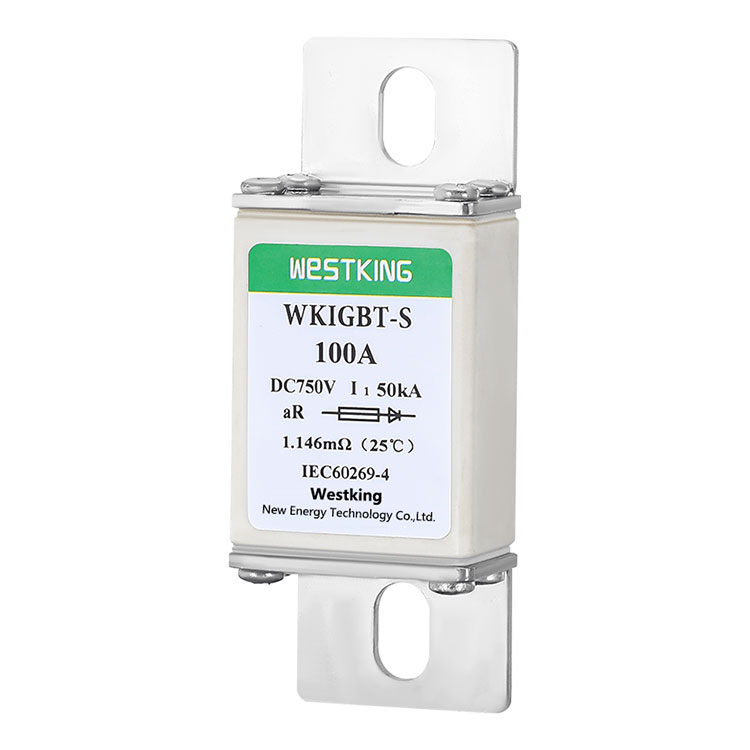

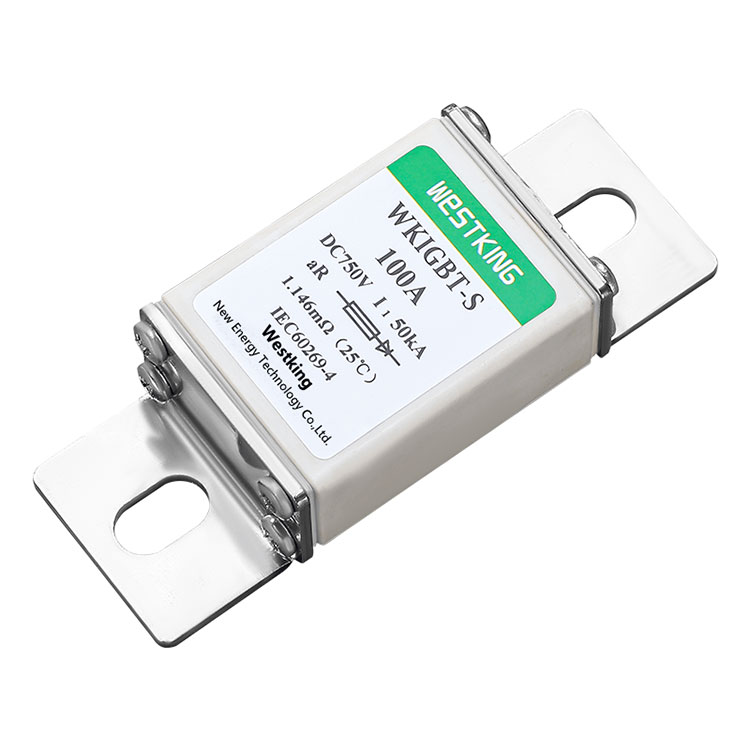

Westking's 750VDC IGBT Fuse 750VDC WKIGBT-S Fuse Link is a highly reliable and outstanding protective fuse specifically designed for IGBT module protection. This fuse is suitable for IGBT inverter circuits with DC voltage ratings up to 750V, featuring a low inductance value of ≤15nH, which enables it to cut off fault currents quickly, effectively protecting the equipment's safety.

Send Inquiry

Product Description

Westking's 750VDC IGBT Fuse is a highly reliable and outstanding protective fuse specifically designed for IGBT module protection. This fuse is suitable for IGBT inverter circuits with DC voltage ratings up to 750V, featuring a low inductance value of ≤15nH, which enables it to cut off fault currents quickly, effectively protecting the equipment's safety.


Westking's 750VDC IGBT Fuse 750VDC WKIGBT-S Fuse Link offers the following features:

Fast Power Off: Quickly cut off the current during a fault, reducing the risk of damage.

Low Inductance: With an inductance value of ≤15nH, it helps minimize interference and voltage fluctuations in the circuit.

High Voltage Rating: The 750V DC voltage rating meets the needs of high-voltage circuits.

Reliability: Strict testing ensures stable performance in harsh environments.

Easy Installation: Bolt-fixed design for convenient installation and usage.

Westking's 750VDC IGBT Fuse is an ideal choice for protecting IGBT modules and inverter circuits, offering outstanding performance and reliability that has earned it wide market recognition. When using this fuse, please follow relevant installation guidelines and regularly check its working status to ensure circuit safety.


750VDC WKIGBT-S Fuse Link Technical data

?Rated voltage: 750Vdc
?Rated currents: 25A...250A
?Utilization category: aR
?Rated breaking capacity: 50kA


Standards

IEC/EN 60269-4

RoHS Compliant


750VDC WKIGBT-S Fuse Link KEY FEATURES/ADVANTAGES

Fast Power Off: Effectively reduces the risk of damage by quickly cutting off fault currents.

Low Inductance: Minimizes circuit interference and improves stability with an inductance value of ≤15nH.

High Voltage Rating: Meets the demands of high-voltage circuits with a 750V DC voltage rating.

Reliability: Durable and adaptable to harsh environments due to strict testing.

Easy Installation: Convenient bolt-fixed design for simple installation and usage.


750VDC WKIGBT-S Fuse Link APPLICATIONS

Industrial Control Systems: Protecting IGBT modules and inverter circuits from damage caused by overvoltage, overcurrent, and other faults.

Solar Photovoltaic Power Generation: Protecting photovoltaic inverter circuits to improve system reliability and stability.

Wind Power: Protecting high-voltage circuits in wind turbine generator sets, including control systems, converters, and motors.

Rail Transportation: Protecting high-voltage circuits in traction converters, braking control systems, and rail signal equipment.

Power Electronic Devices: Protecting high-voltage circuits in devices such as variable frequency drives, rectifiers, and switching power supplies.

Communication Equipment: Protecting high-voltage circuits in communication systems, such as fiber optic communication and wireless communication.

Medical Equipment: Protecting high-voltage circuits to ensure the reliability and safety of medical devices.

Aerospace: Protecting high-voltage circuits in aircraft and satellites to improve system stability and reliability.


Certifications

? is09001 iatf16949


Origin

China


ELECTRICAL CHARACTERISTICS

Rated Current I2t (A2s) Power loss(w) 1.0 In Net weight
Melting Clearing
25A 23 140 12.0 224g
32A 46 245 13.0
40A 72 390 14.0
50A 130 690 16.0
63A 245 1350 16.8
80A 450 2340 19.5
100A 790 4100 24.0
125A 1250 6850 28.0
160A 2500 13500 33.0
200A 4300 22500 39.0
250A 7300 38000 46.0


Dimensions (mm)
